• MG42 2-Piece .308 Blank Barrel Set

  • $18.00 USD

  • Description

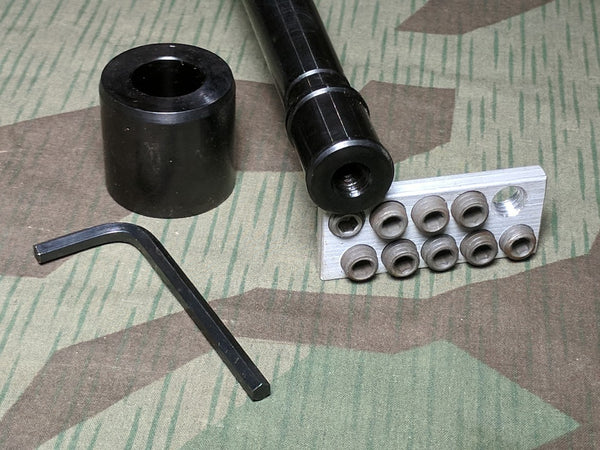

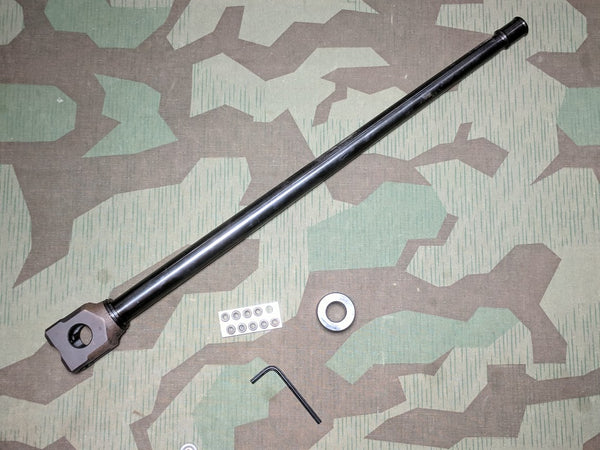

    This is a complete 7.62x51 NATO .308 caliber (NOT 8mm) blank fire 2 piece barrel with some additional design features engineered specifically for firing blanks. The kit includes: 1 two part blank barrel, 1 set of 8 various aperture set screw blank adapters, 1 Allen wrench, and 1 muzzle cone replacement block.

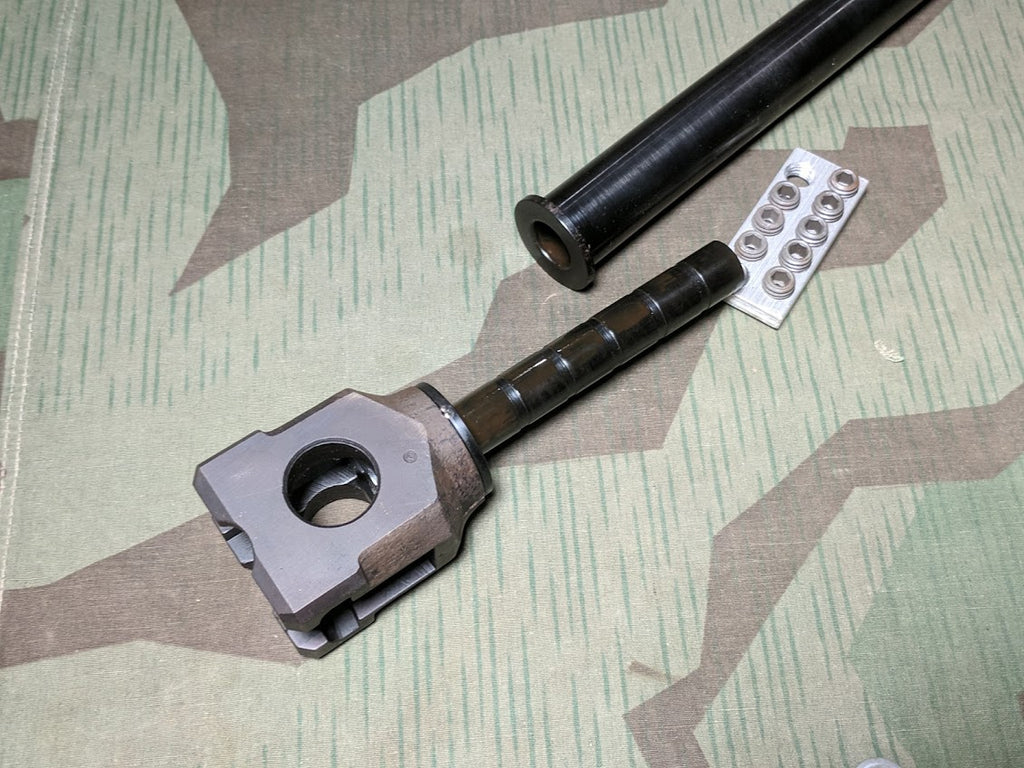

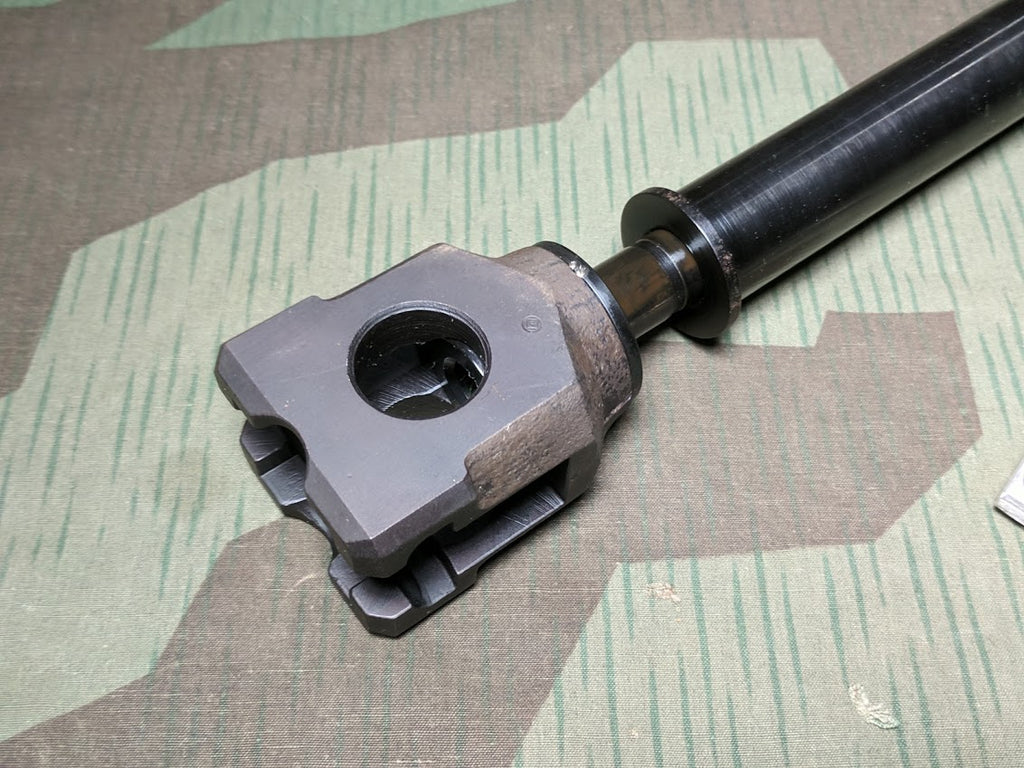

    The two piece barrel set up is one of the best ways to blank adapt your full auto or semi-auto MG42. For the gun to cycle, the barrel normally floats within the shroud traveling with the bolt for a short distance before unlocking from the bolt and returning to the forward firing position. The advantage of the 2 piece design is that, rather than moving the entire weight of the full barrel, only the much lighter rear section must travel back with the bolt. This is significantly easier for a blank cartridge to do allowing for better blank adapting. More flash, more bang going out of the front of the gun rather than being used up just to operate it. Our muzzle cone replacement block is designed to vent gas forward rather than channeling it back towards the barrel, allowing the 2 pieces of the barrel to work together rather than fight each other. To adjust the back pressure for blanks you simple change out the set screws in the end on the barrel allowing for easy and relatively quick adjustments for various powder loads.



    We also offer the booster cone replacement piece separately as well as the set of 8 set screws. So if you already use a 2 piece barrel replacing this part should make your MG fire blanks much better. It makes the 2 piece barrel more efficient. Please note that when you are using a 2 piece barrel you should NEVER have any kind of restriction in the booster cone. This only makes the 2 piece barrel fight itself! The restriction should be in the forward part of the 2 piece barrel so that all the gas pressure is used to operate the smaller rear chamber piece.



    This item can NOT be shipped internationally - all non-US orders will be canceled!



    INSTALLATION NOTES:

    • Once your barrel and muzzle cone are removed and the booster cone is off; install the two piece blank barrel basically the same way your regular barrel is installed. Then, slide the muzzle cone replacement block over the barrel bushing. When you reinstall the booster cone watch the barrel closely, only screw the booster cone down until the barrel is pushed back slightly. You do not have to tighten it down all the way! It only has to be tightened enough to contact and support the barrel bushing. Tightening it down too far will push the barrel back towards the receiver and can interfere with the function of the gun; this also applies to normal use as not just blank fire. The spring loaded clip is what keeps the booster cone from unscrewing, not you wrenching it down as tight as humanly possible!
    • Always start your blank adapting tests without any set screw installed! There is a slim chance the blanks you are using may not require any restriction. If the gun does not cycle, move on to installing the blank adapting set screws.
    • Start with the set screw that has the largest hole in it first! Test fire, If the gun does not cycle, install the set screw with the second largest hole and so on. Ensure the set screw tightened down before firing. Only install one set screw at a time.
    • You always want to have the set screw with the largest hole possible that still cycles the gun!
    • Never load more than about 4 or 5 blanks on a belt for testing! If the bolt fails to come back far enough to catch the sear, the gun may just keep firing and the trigger would be ineffective to stop it. Failing that, you can generally stop a runaway MG42 easily buy grabbing ahold of the belt, thus preventing it from feeding into the gun.
    • Using the original muzzle cone or a blank adapted muzzle cone will just cause the 2 piece barrel to fight with itself and reduce the reliability of your MG!
